SPECIFICATIONS

Application: Desktop,Server

Back I/O Ports: 1x RJ45

Brand Name: ZSUS

Chipset: Intel B75

Chipset Manufacturer: Intel

Choice: yes

Hign-concerned Chemical: None

Maximum Ram Capacity: 16 GB

Memory channel: Double

Number of M.2: 1

Number of PCI: 1

Number of PCIe x 16: 1

Number of SATA Ports: 4

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 3.0

Package: Yes

Processor compatibility: Intel Core i7

RAID Supported: No

Socket Type: LGA 1155

Special Features: None

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR3

Support USB Type: USB 2.0,USB 3.0

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,DESIGN

With CPU: No

Please check our Bundle carefully before purchasing.

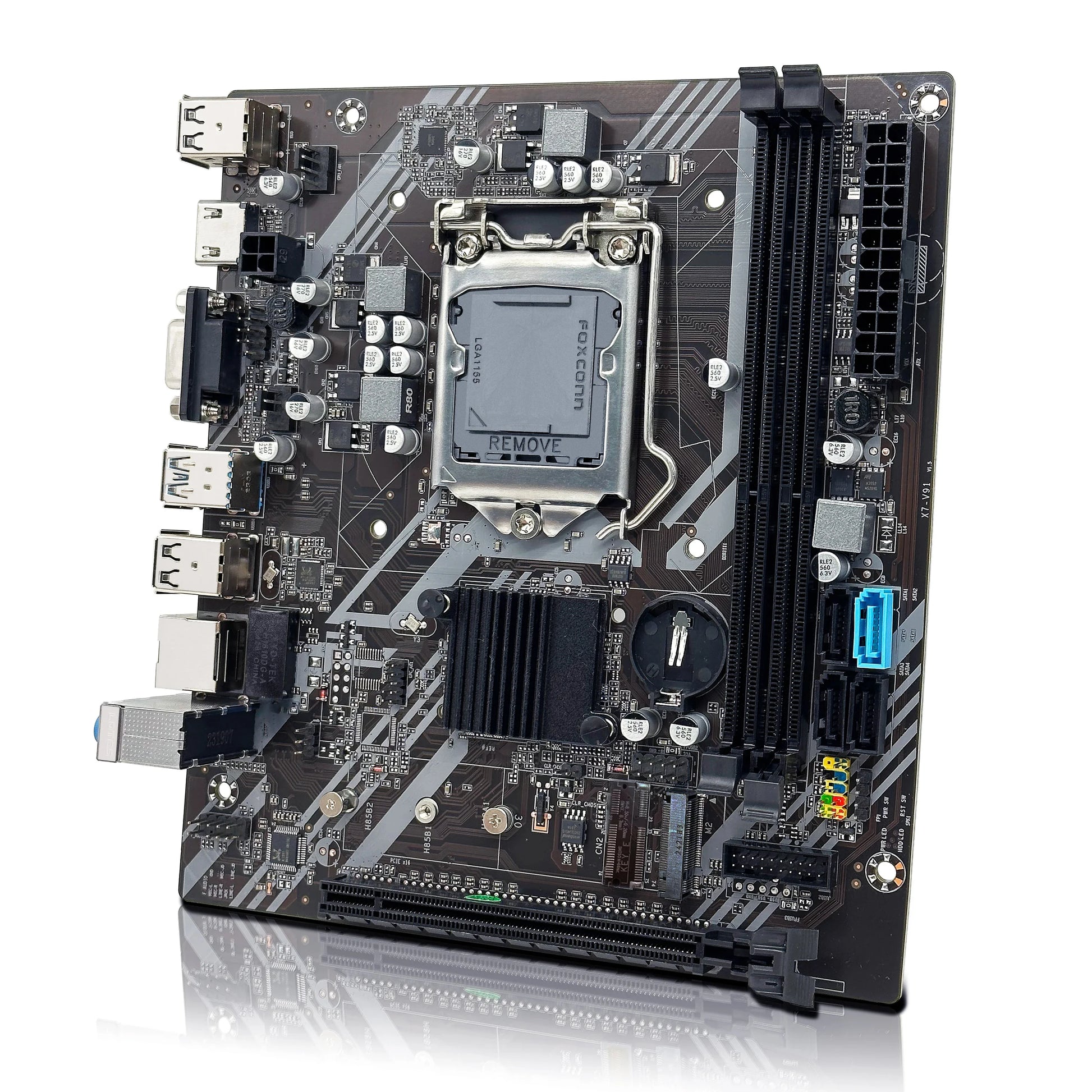

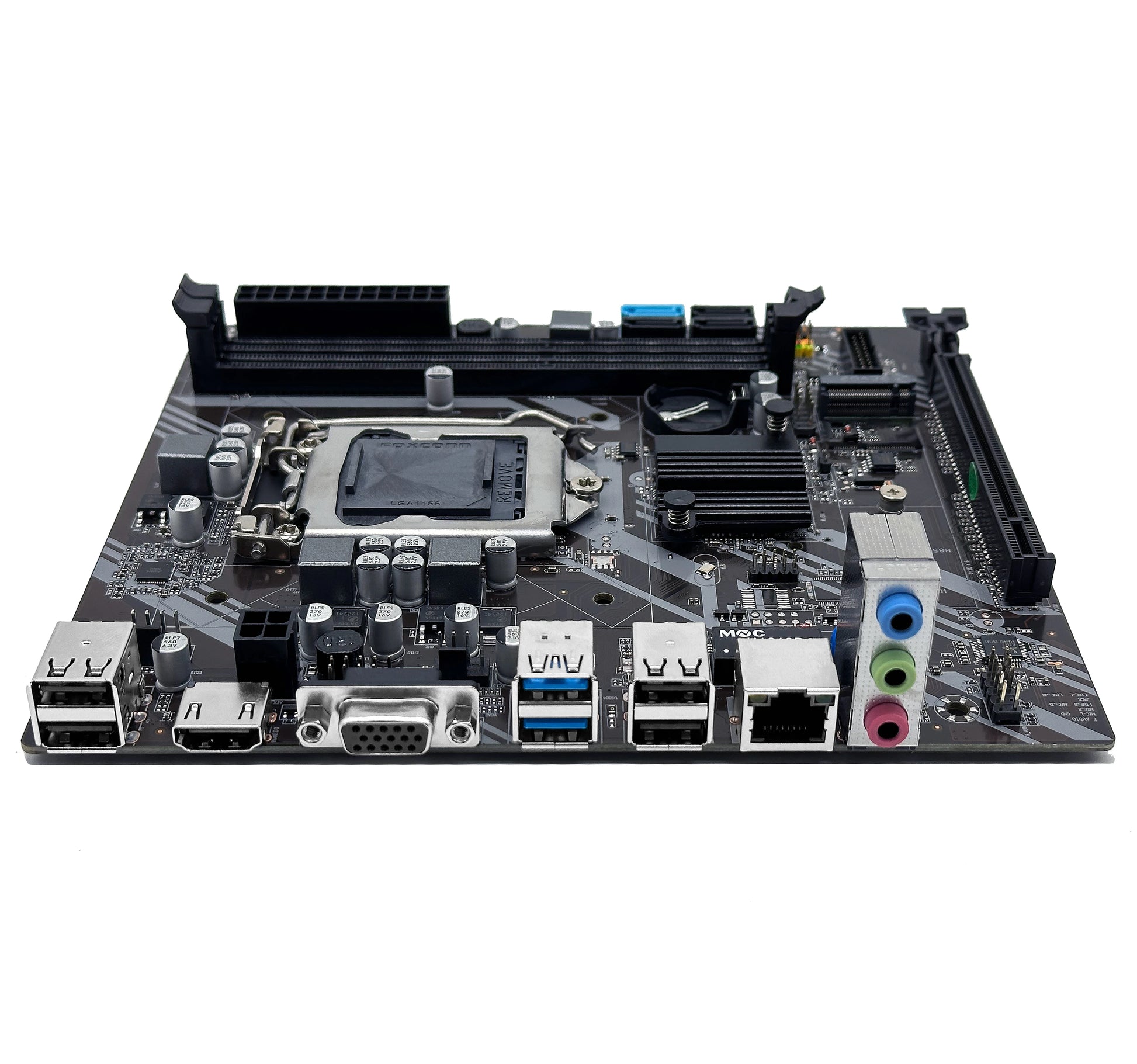

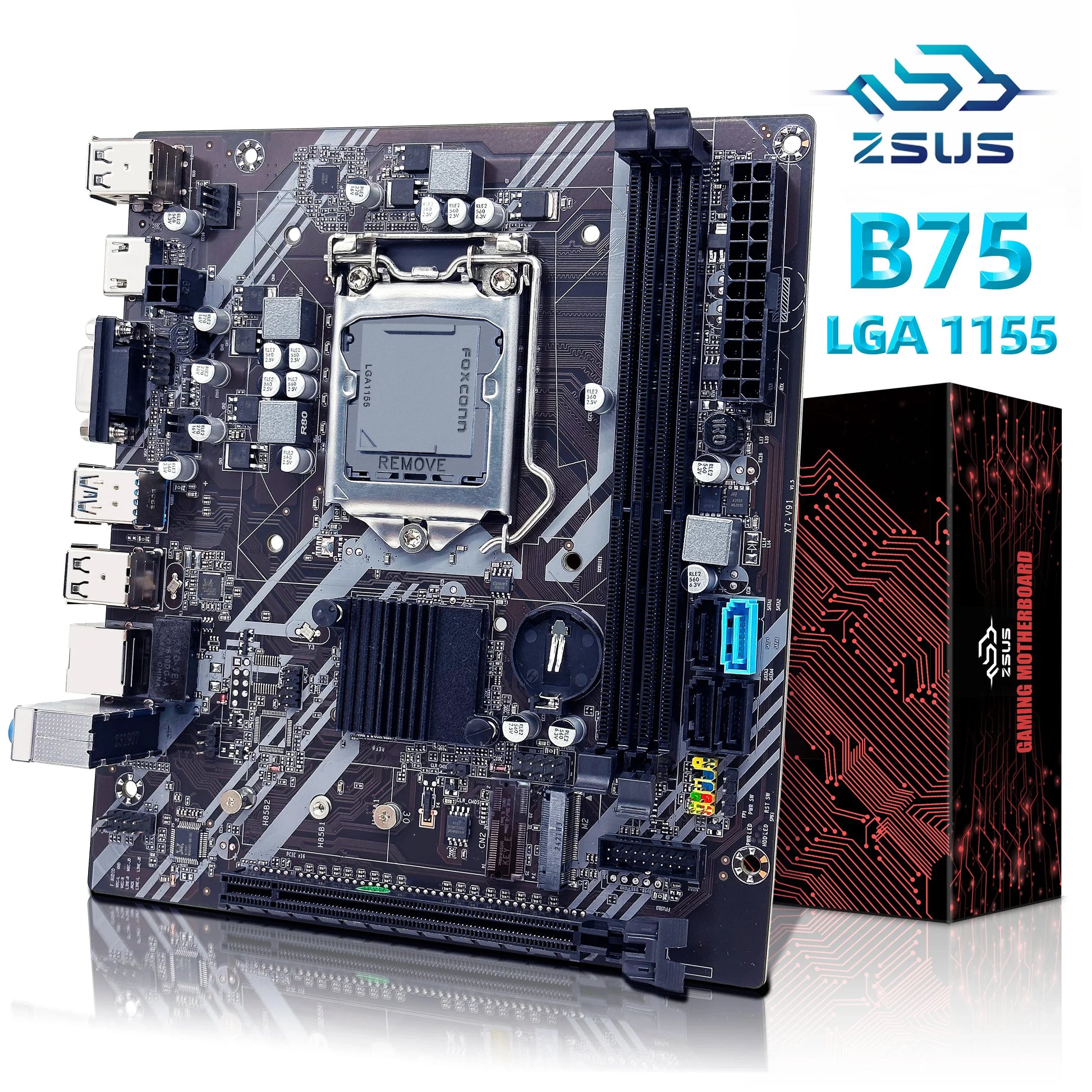

Model:ZSUS B75 Motherboard

Chip: B75 chipset series.

Processor: CPU Intel LGA 1155 Core i7, i5, i3 series

Memory: 2 * DDR3 slot 1066/1333/1600 MHz, up to 16GB

Storage: 1*SATA3.0+3*SATA2.0

Expansion slot: 1*PCI-E 16X slot

Network:100M FastEhermet

USB: 2*USB3.0+4*USB2.0

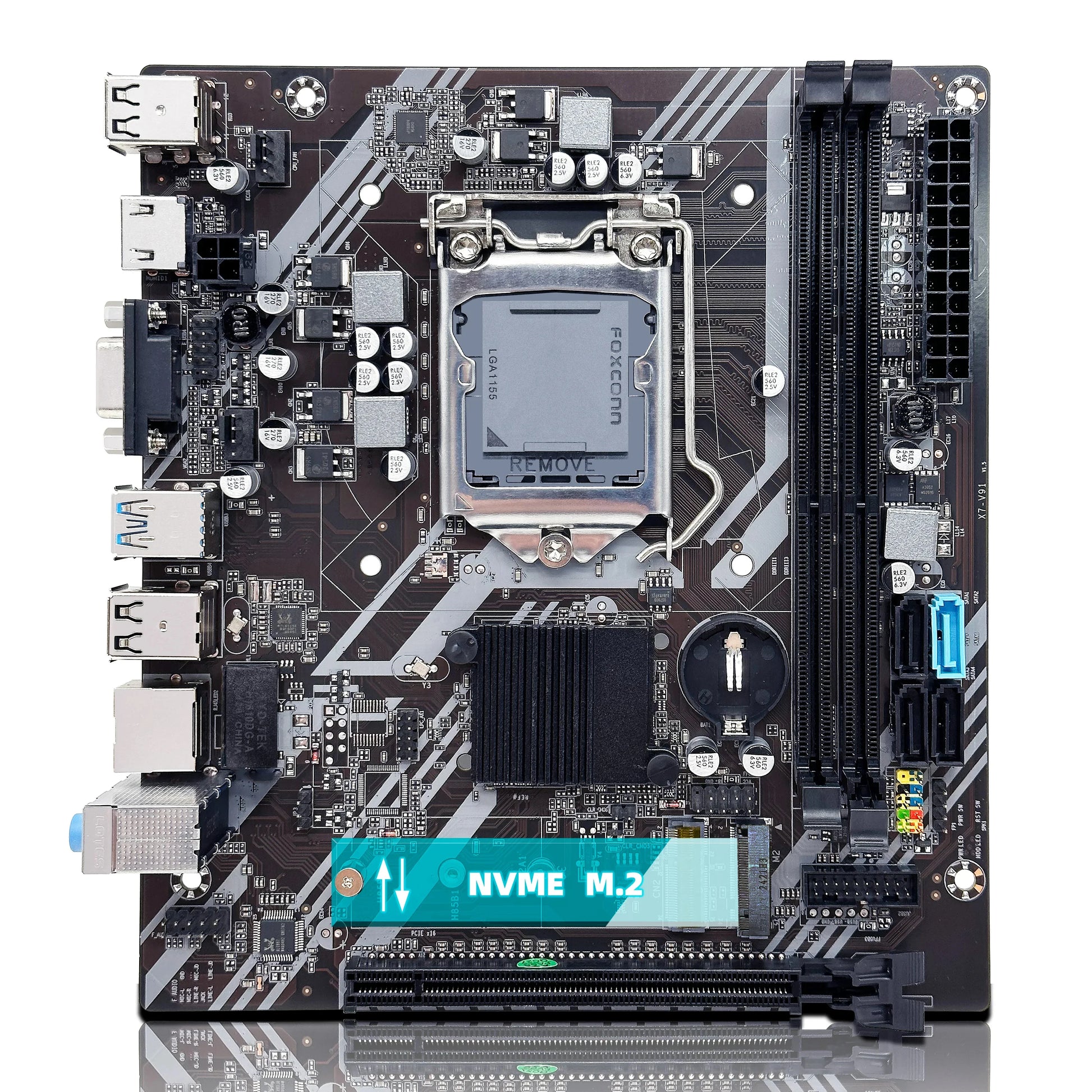

Input/output:1*NVME M.2 Interface1 * HDMI Interface1 * VGA1 * RJ451

InterfacePower supply: ATX 24PIN + ATX 4PINT

Size: 170MM*190MM

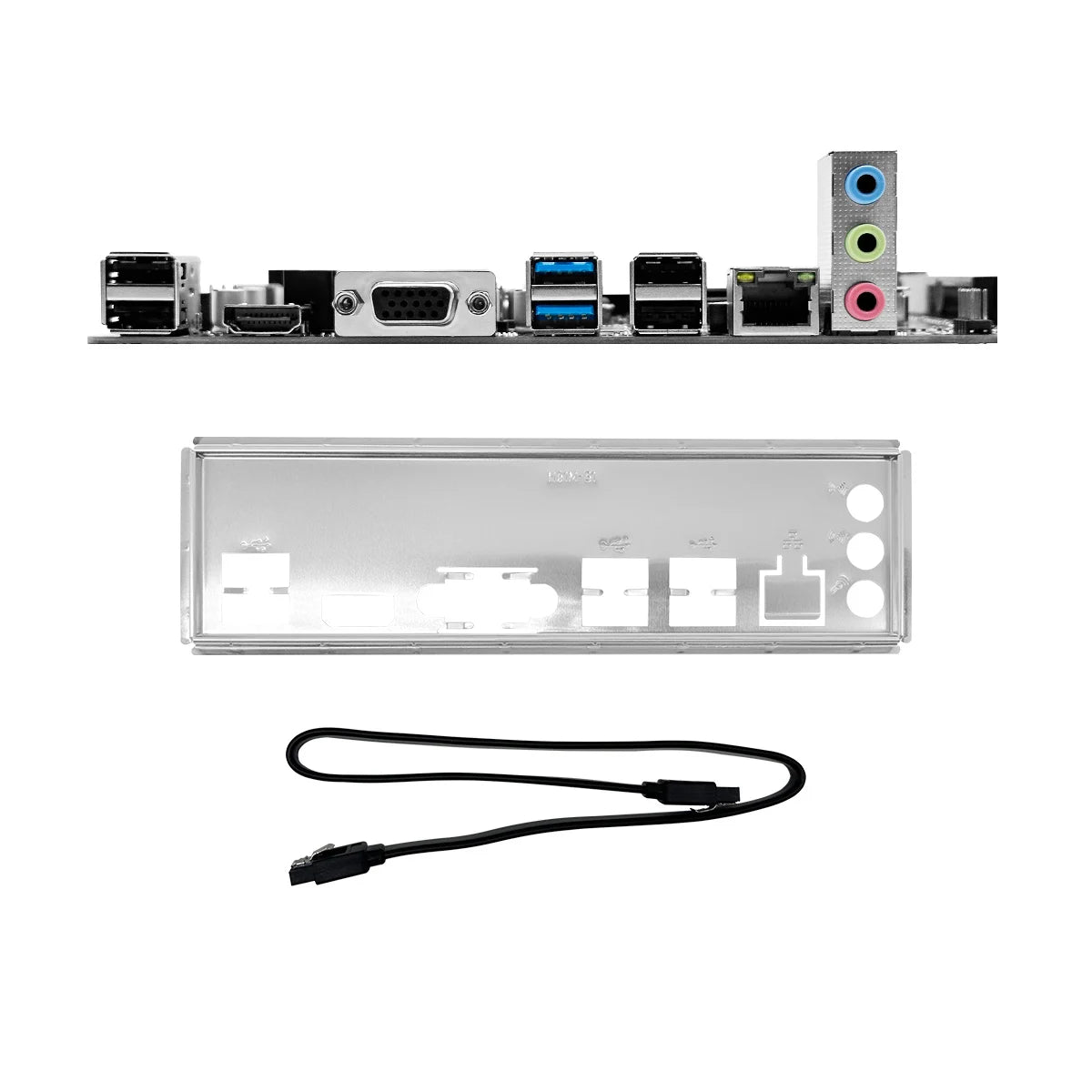

Package List:

1 * B75 LGA 1155 Motherboard

1 * SATA Cable

1 * Motherboard baffle

1 * Motherboard Installation Manual

All the motherboard testing before shipment

NOTE:

The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.

The old and new models are sent randomly, and the appearance may be different depending on the motherboard batch.
