QIYIDA X99 H9S Motherboard Set Kit With LGA2011-3 Xeon E5 2630 V4 CPU DDR4 16GB REG ECC memory NVME M.2 TPM 2.0 Interface SATA3

QIYIDA X99 H9S Motherboard Set Kit With LGA2011-3 Xeon E5 2630 V4 CPU DDR4 16GB REG ECC memory NVME M.2 TPM 2.0 Interface SATA3

$84.30 USD
$84.30 USD $84.30 USD
Sale Sold out
Shipping calculated at checkout.
Bundle

SPECIFICATIONS

Application: Desktop

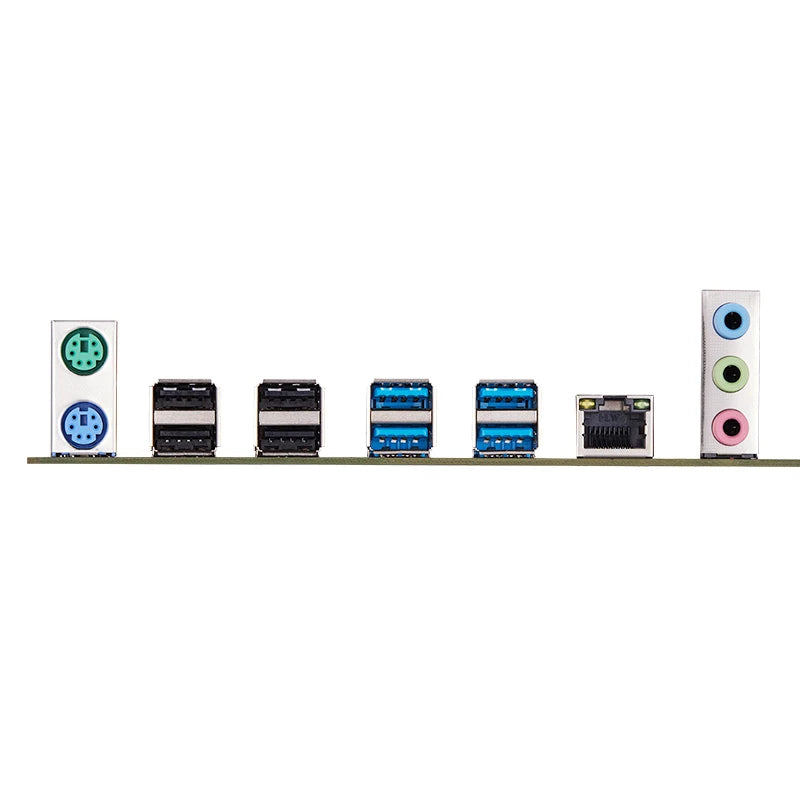

Back I/O Ports: 1x RJ45

Brand Name: QIYIDA

Chipset: Intel X99

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

Hign-concerned Chemical: None

Maximum Ram Capacity: 128 GB

Memory channel: Four

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 3.0

Package: Yes

Processor compatibility: Intel Xeon

RAID Supported: YES

Socket Type: LGA 2011-3

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe),M.2(SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Usage Scenario: Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Industrial computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

With CPU: Yes

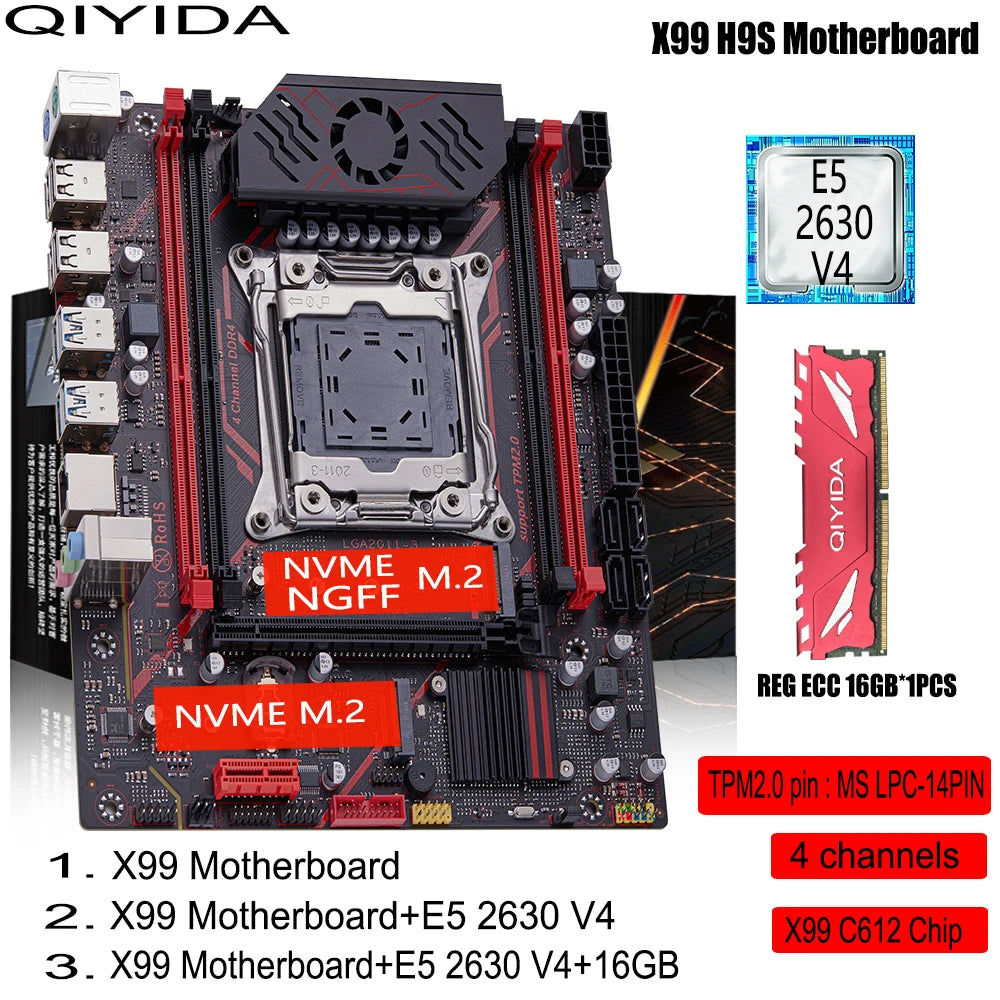

You can choose from three specifications: motherboard or motherboard+CPU or motherboard+CPU+memory
1. (motherboard x1)
2. (motherboard x1+CPU x1)

3. (motherboard x1+CPU x1+16GB memory x1)

Please choose according to your needs



Notice：


The front USB needs to be correctly inserted into the designated USB pin position (yellow pin).


If inserted in the wrong location, it can cause the computer to not start.


CPU:
Processor Series: Intel Xeon
Model number: E5 2630 V4
Processor Speed: 2.2GHz
Processor Socket: 2011-3
stepping: SR2R7
The number of CPU cores: 10
The number of threads: 20
L3 cache size (MB): 25MB
Wattage: 85Watt
Memory:
Chip: SEC / HY/ MIC and others (ship at random)
Type: ECC REG (server memory)
Frequency: DDR4 2133
Capacity: 16GB (1PCS*16GB)

Power interface：24pin+8pin
Note:
1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5:We show photos of motherboard, pictures are for reference only, subject to our available products.

Feature:
100% brand new and high quality!
Support REG ECC server memory/desktop memory Note that server memory and desktop memory. The two types of memory cannot be mixed together.

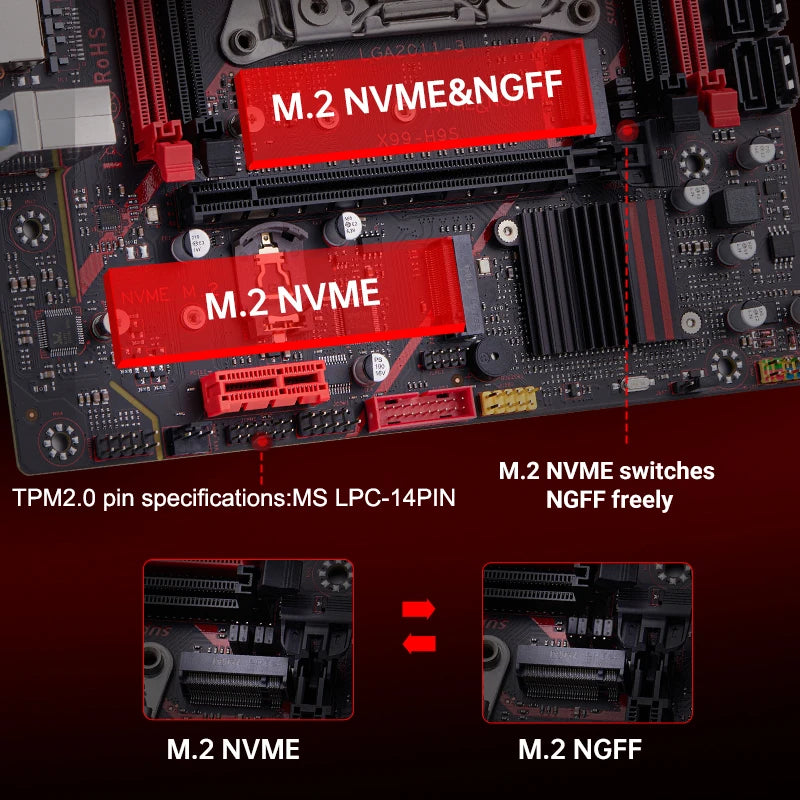

Support M.2 NVME/NGFF SSD.
High compatibility for a higher experience.
All solid capacitors, fine workmanship, professional stability.
The power socket has an 8-pin, 24-pin power connector.
Motherboard dimension: 215mm*190mm.
