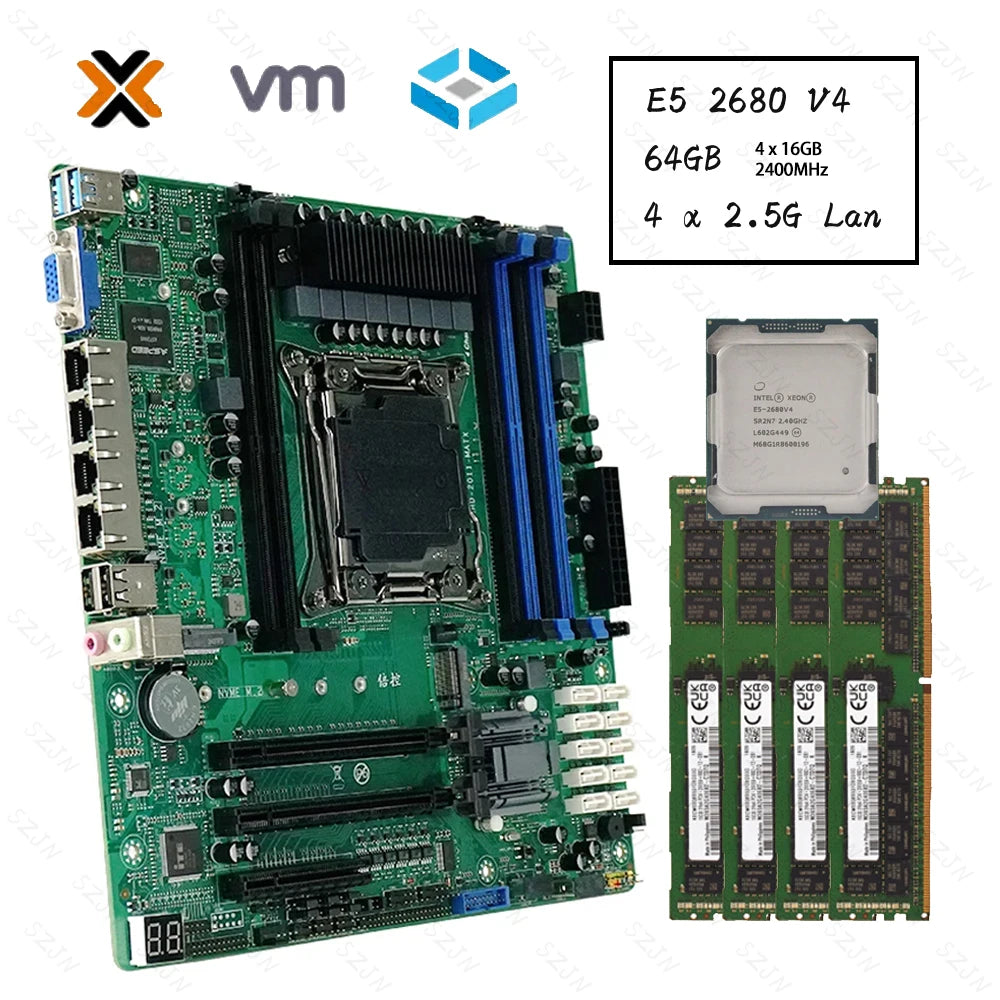

New C612 Motherboard Kit 2680 V4 DDR4 64GB for Servers Firewalls Vpn Abonnement Virtual Machines Routers 4x2.5GE 10xSATA Raid

New C612 Motherboard Kit 2680 V4 DDR4 64GB for Servers Firewalls Vpn Abonnement Virtual Machines Routers 4x2.5GE 10xSATA Raid

$245.60 USD
$245.60 USD $245.60 USD
Sale Sold out
Shipping calculated at checkout.
Bundle

SPECIFICATIONS

Application: Desktop,Server,Workstation

Audio Channels: 2.1

Back I/O Ports: 1x RJ45

Brand Name: SZJN

Certification: FCC,CE

Chipset: c612

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX,CeB

Hign-concerned Chemical: None

Launch Date: 2013

Max LAN Speed: 2500Mbps

Maximum Ram Capacity: 256GB

Memory channel: Four

Number Of Memory Slots: 6

Number of M.2: 2

Number of PCI: 0

Number of PCIe x 1: 0

Number of PCIe x 16: 2

Number of PCIe x 4: 0

Number of PCIe x 8: 1

Number of SATA Ports: 10

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard LAN: 1x RJ45,3x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 3.0

Package: Yes

Ports: USB 3.0

Processor compatibility: Intel Xeon E Series

Quality Certification: ce,FCC

RAID Supported: YES

SATA RAID: 0,1,5,10

Socket Type: LGA 2011-3

Special Features: None

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2242,2280,2260,22110

Usage Scenario: Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Workstation,Server,3-D Modeling,Video Rendering

With CPU: Yes

semi_Choice: yes

If you encounter any problems while using the product, please leave a message for the merchant.

All products undergo testing before shipment. We can provide testing videos.

The merchant sold hundreds of motherboards of this model and has experience in handling various situations.

If you encounter any problems, please do not apply for a refund directly.

Maliciously initiating a refund dispute without any quality issues with the product will result in the merchant complaining to the buyer on the AliExpress platform.



Product Features:

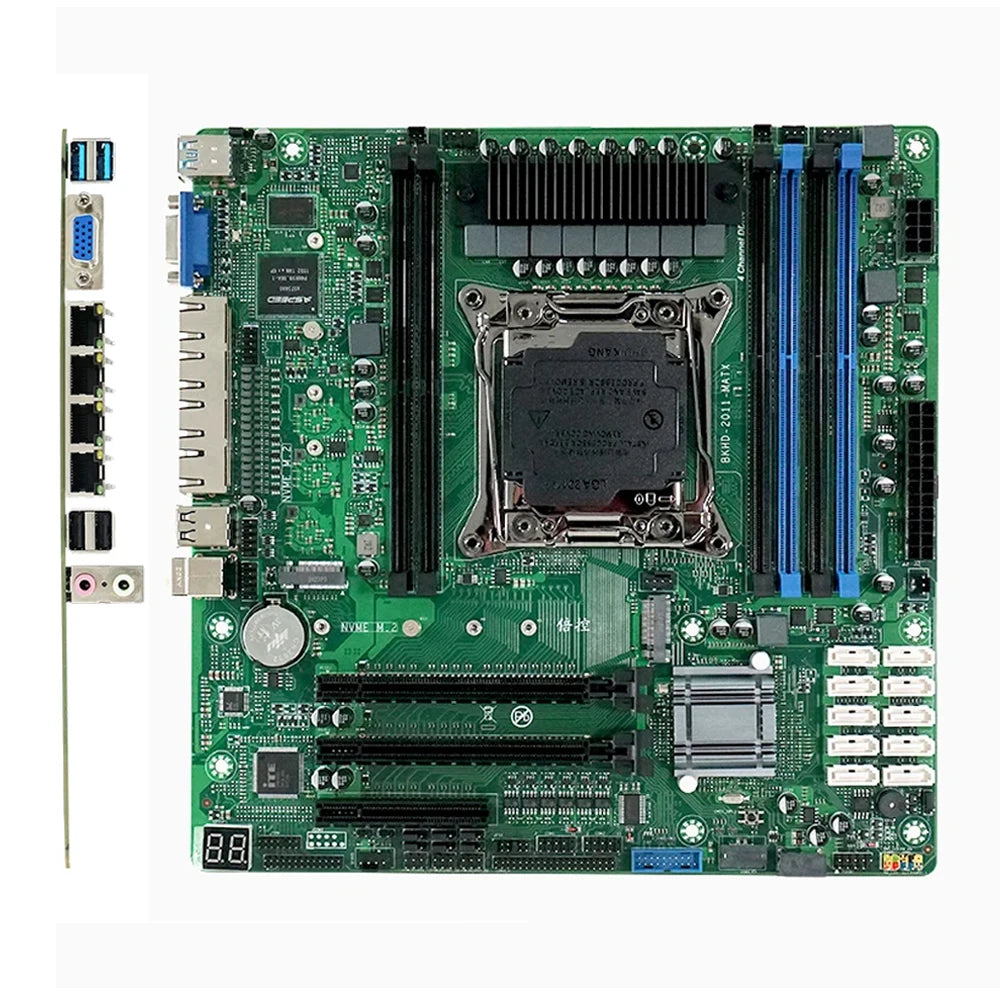

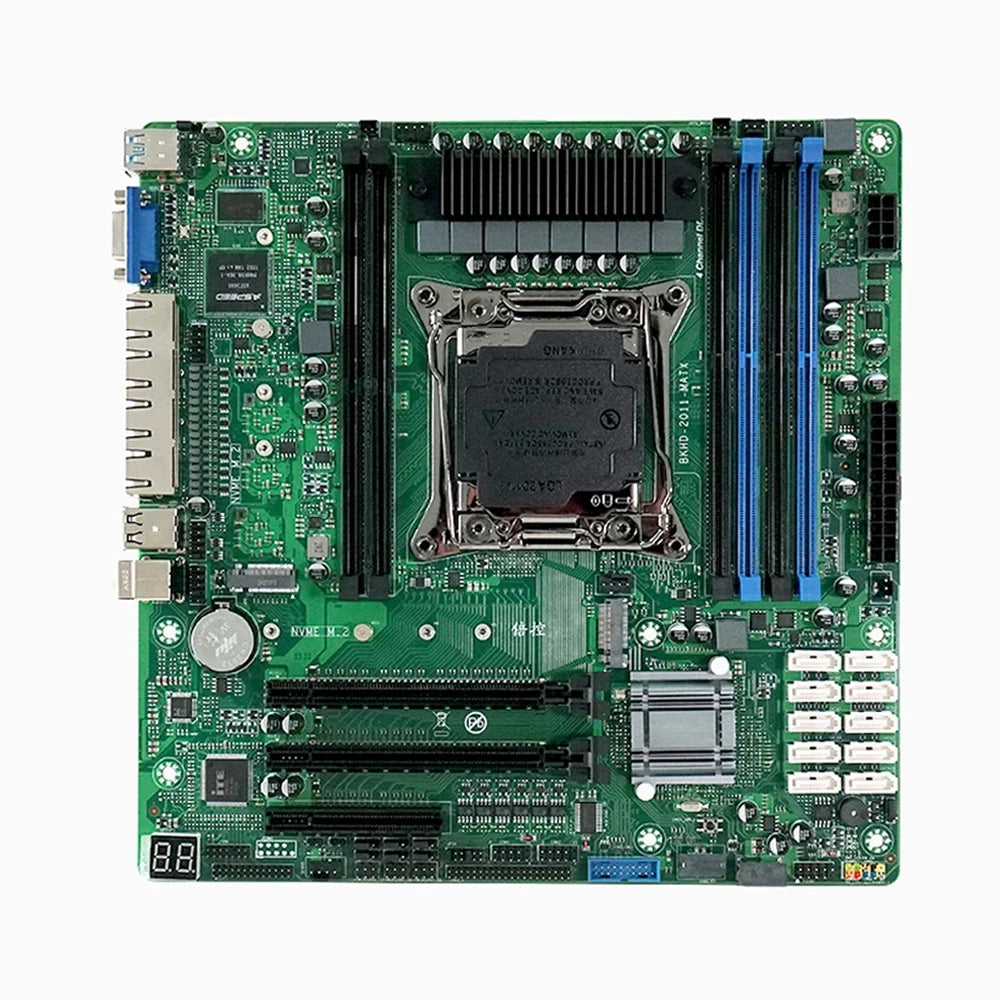

The BKHD-2011-mATX motherboard is a high-performance motherboard designed to meet the needs of various application scenarios such as enterprise-level servers, data centres, industrial control, security surveillance, IoT gateways and high-performance computing.

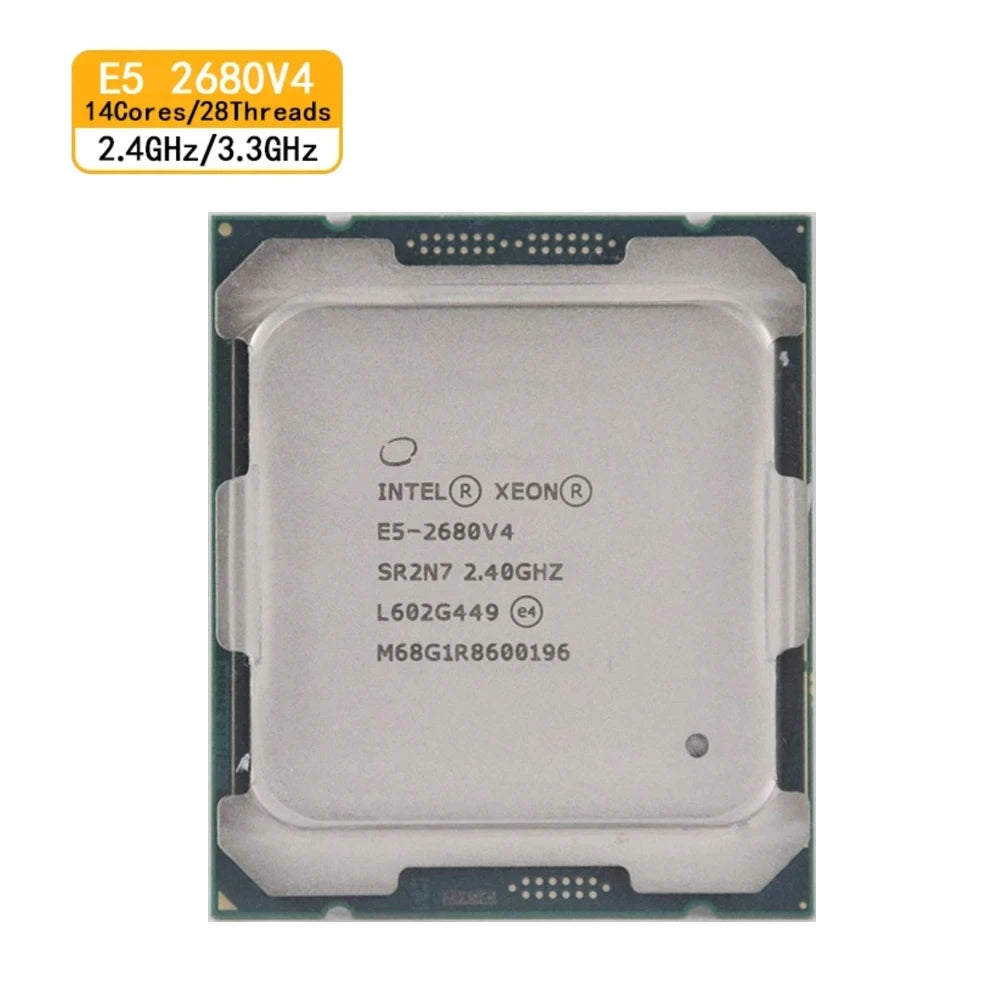

Compatible with the LGA2011-3 Xeon server series processors, it delivers powerful computing performance. Equipped with 4 Intel i226 chips, it provides up to 2.5Gbps network bandwidth, which is suitable for application scenarios with high data transfer requirements and improves network performance.

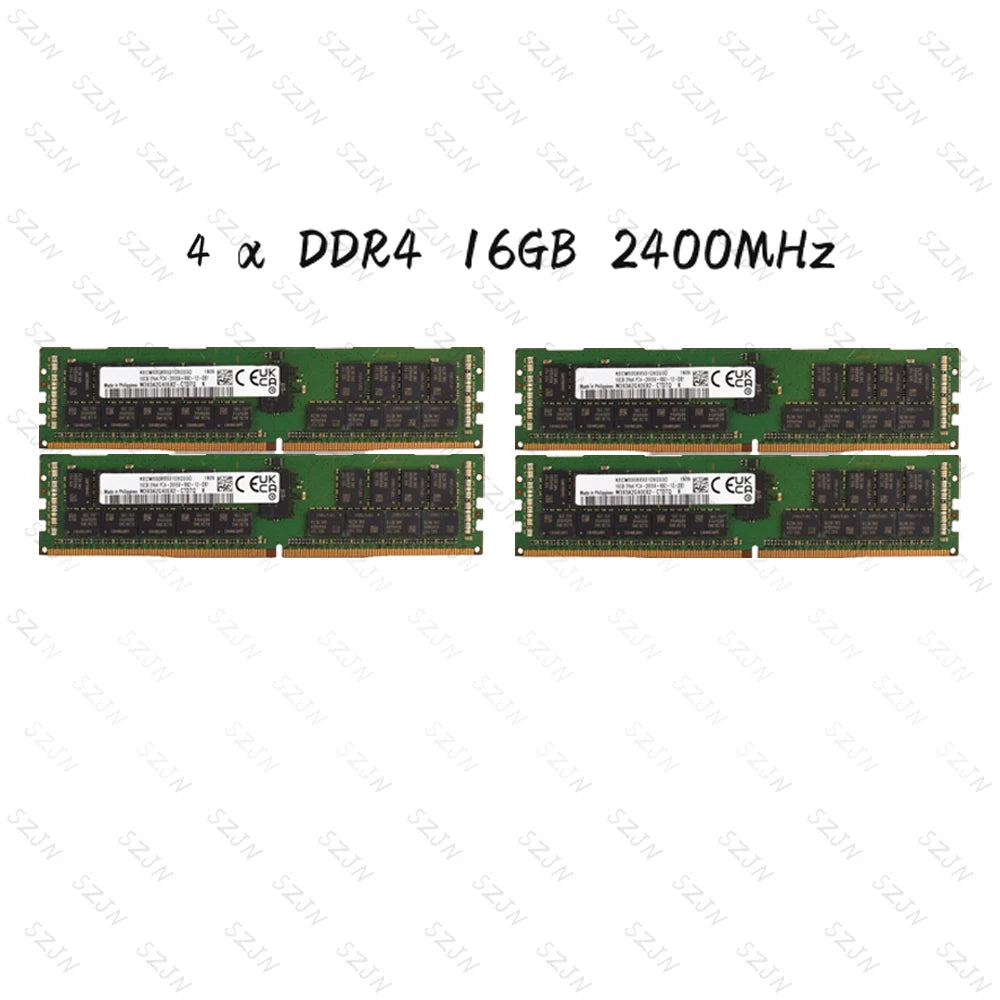

Supports 6 DDR4 DIMM memory slots, providing higher memory bandwidth and system performance to meet multi-tasking requirements.

Offers 2 NVMe interfaces and 10 SATA interfaces, supporting flexible configuration of high-speed SSDs and a wide range of HDDs to meet high-capacity data storage needs.

Offers 2 PCIe x16 Gen 3 slots and 1 PCIe x8 Gen 3 slot, supporting high-performance expansion cards such as graphics cards, network accelerators, storage controllers, etc. to enhance the system's expansion and processing capabilities.

Offers 1 VGA display output, providing basic video output options, easy system installation and management.
