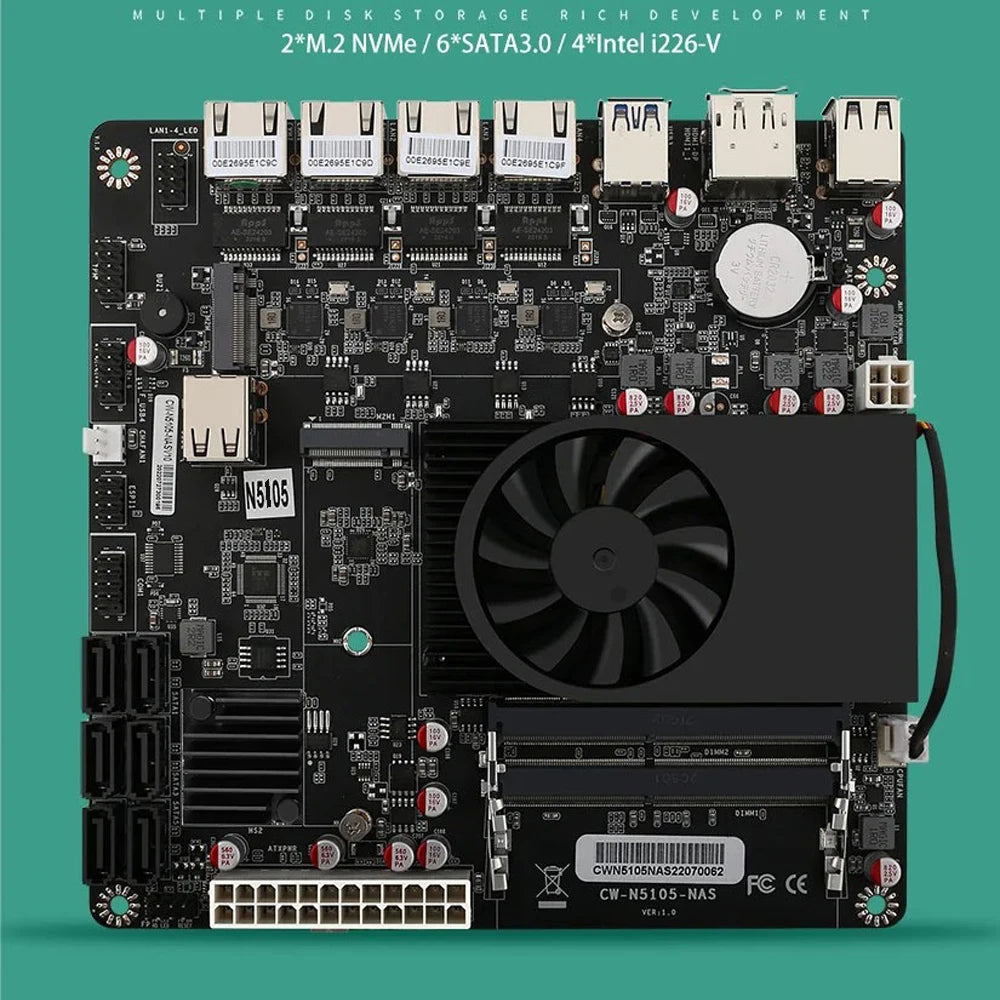

N5105 Industrial Motherboard NAS Motherboards 4 Cores 4 Threads Low Power Processor 4x2.5G i225 Network 2 M.2 Slot 6xSATA DP HD
N5105 Industrial Motherboard NAS Motherboards 4 Cores 4 Threads Low Power Processor 4x2.5G i225 Network 2 M.2 Slot 6xSATA DP HD
Couldn't load pickup availability

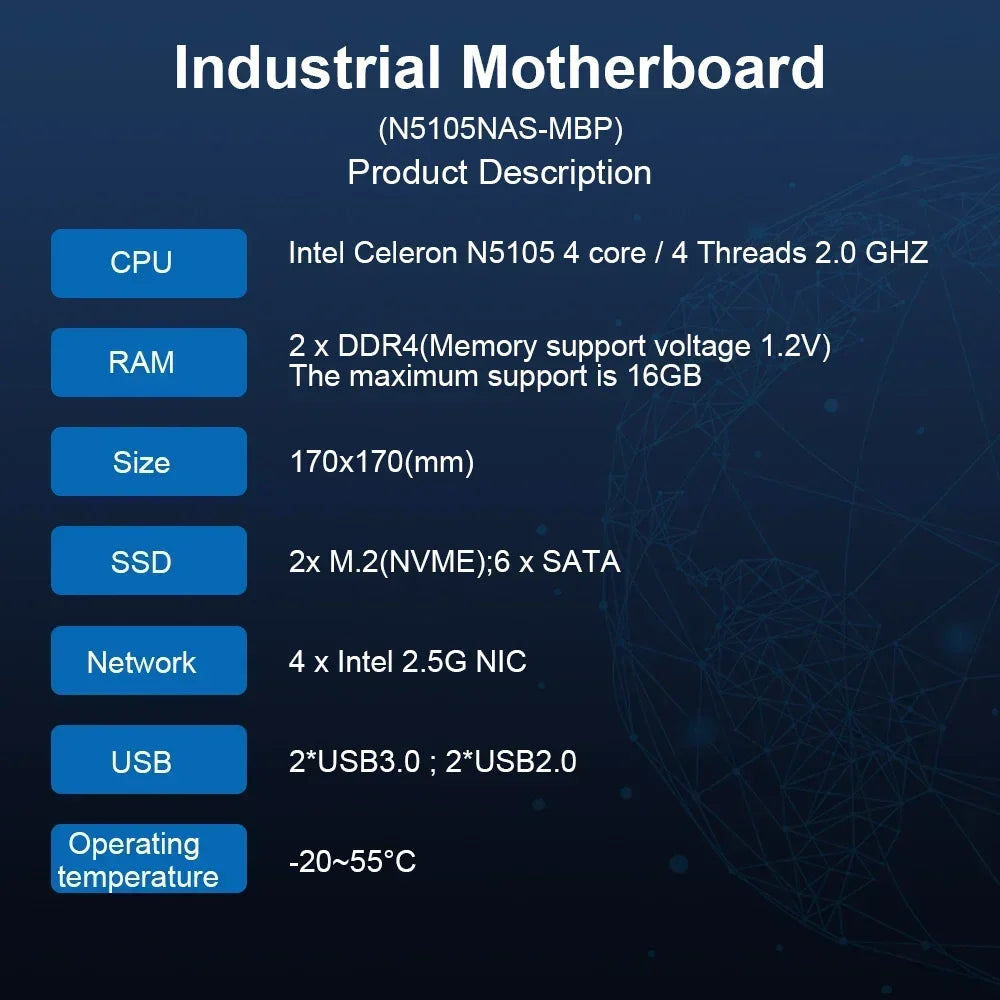

SPECIFICATIONS
Application: Desktop,Laptop,Server,Workstation,Mining,Industrial computer
Back I/O Ports: 2x USB 3.2/3.1 Gen 1,Displayport,HDMI 2.0
Brand Name: YiHESZ
Certification: None
Chipset: Intel Others
Chipset Manufacturer: Intel
Choice: yes
Form Factor: others
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 2
Number of PCI: 0
Number of SATA Ports: 6
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),SPI TPM Header,Chassis(SYS) Fan Connector(s),USB 2.0 Connector,COM Port Header
Onboard LAN: 3x RJ45
Origin: Mainland China
PCI - E standards: PCI - E 3.0
Package: Yes
Ports: None
Processor compatibility: Intel Celeron
Quality Certification: None
RAID Supported: No
Socket Type: BGA
Special Features: None
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Household,Office,Industrial computer,Workstation,Server,MINI PC,Mining,others
With CPU: Yes
Note: The black color is more expensive, please check it carefully. If you need black color, please select Motherboar+CPU option, if you need green color, please select Only motherboar option (In fact, it also include N5105 CPU)

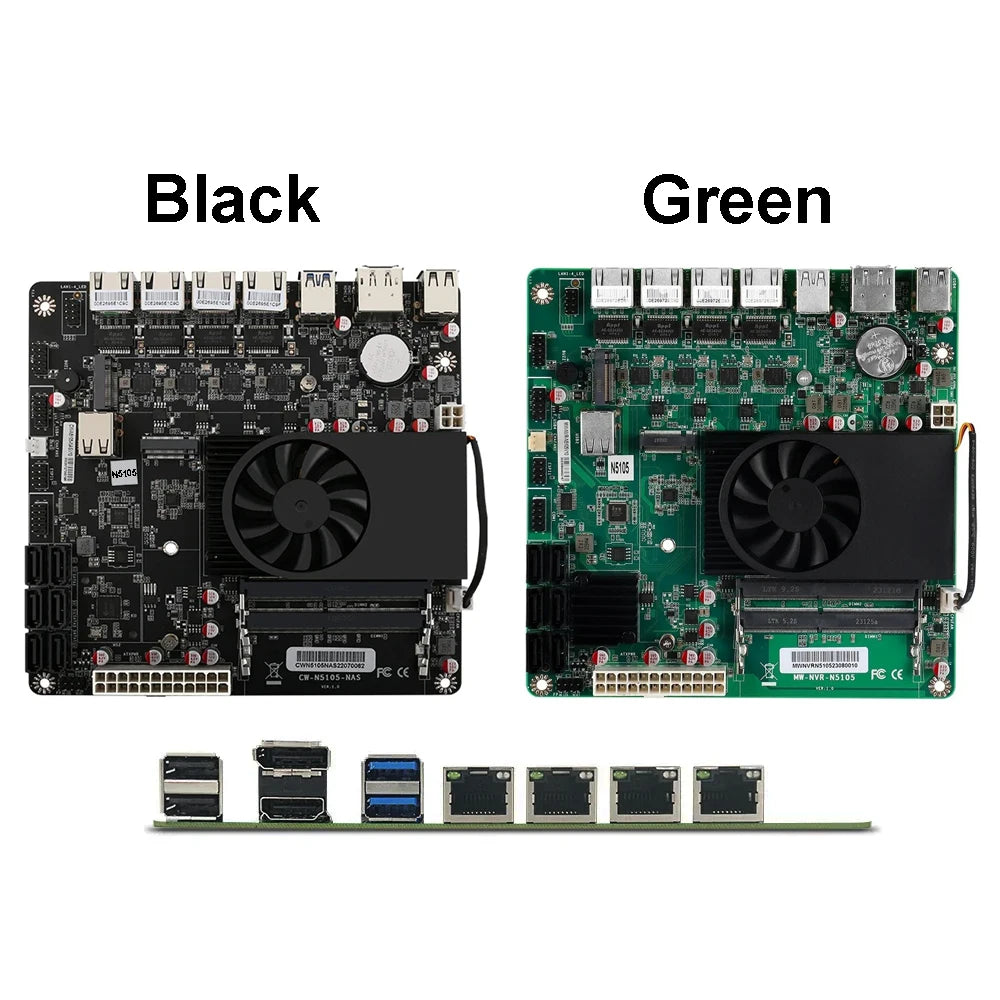

There are 2 color: black and green color, please check your option before placing orders. The black color is more expensive option.

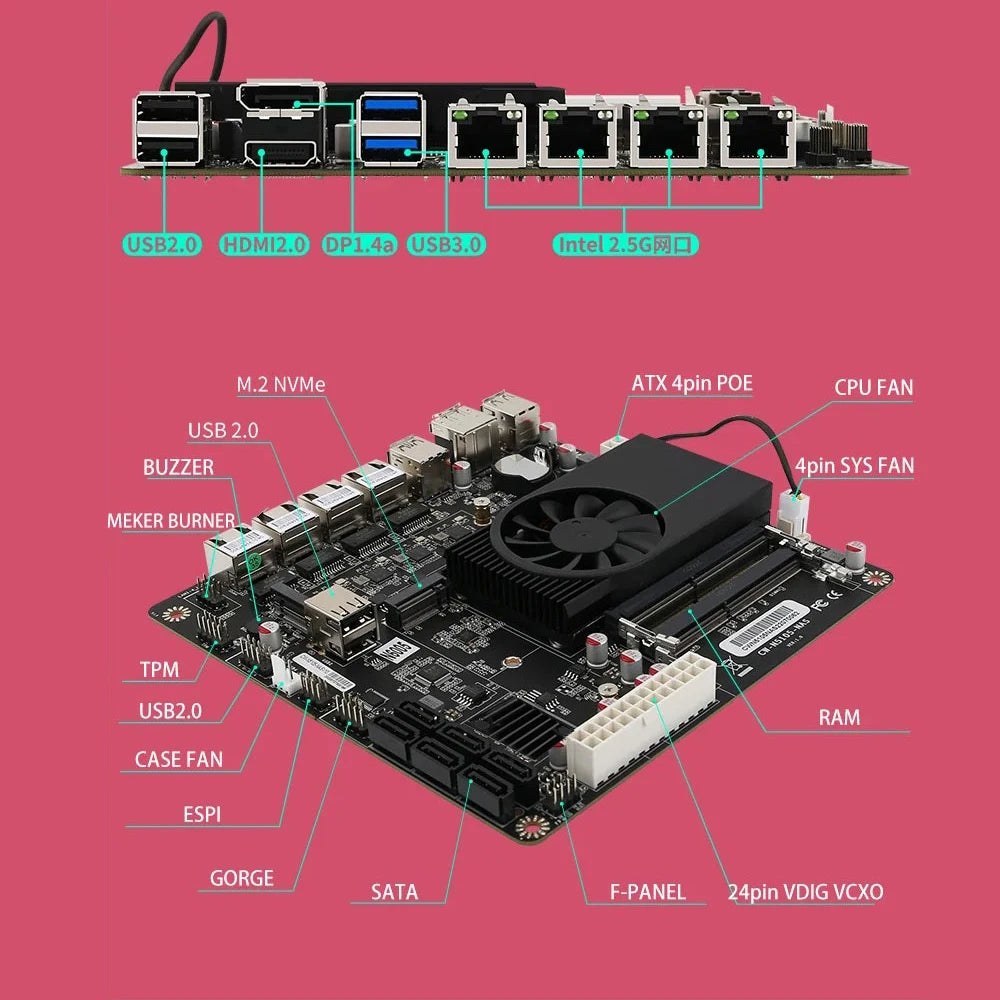

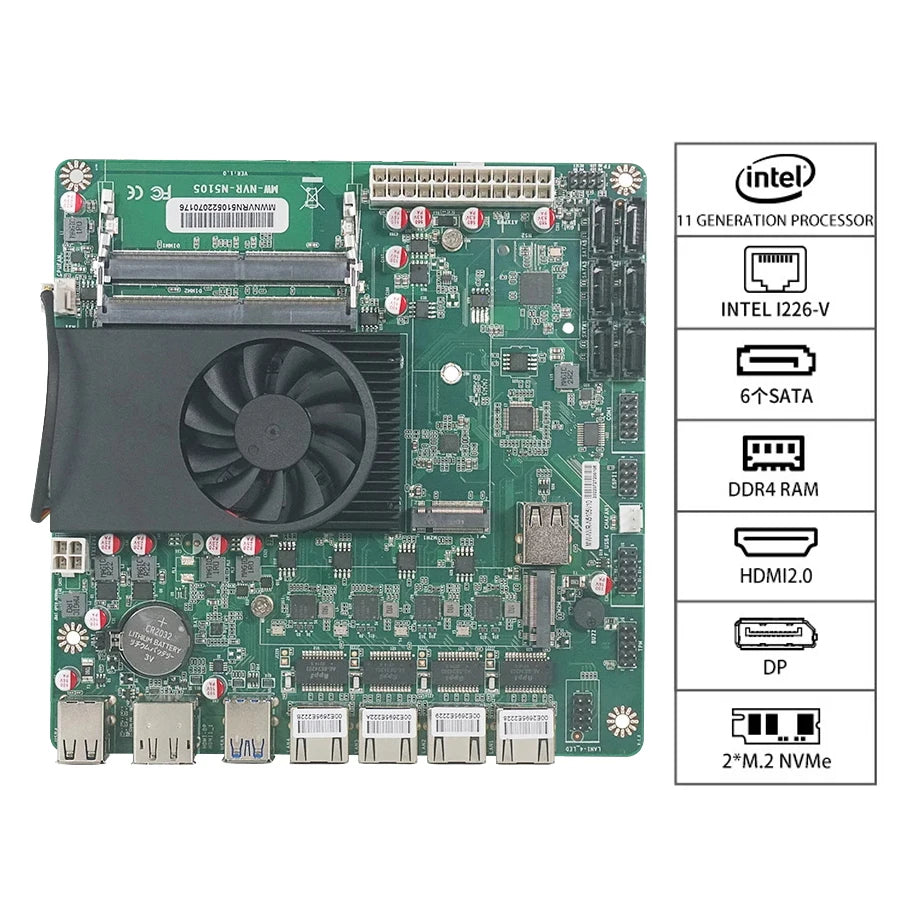

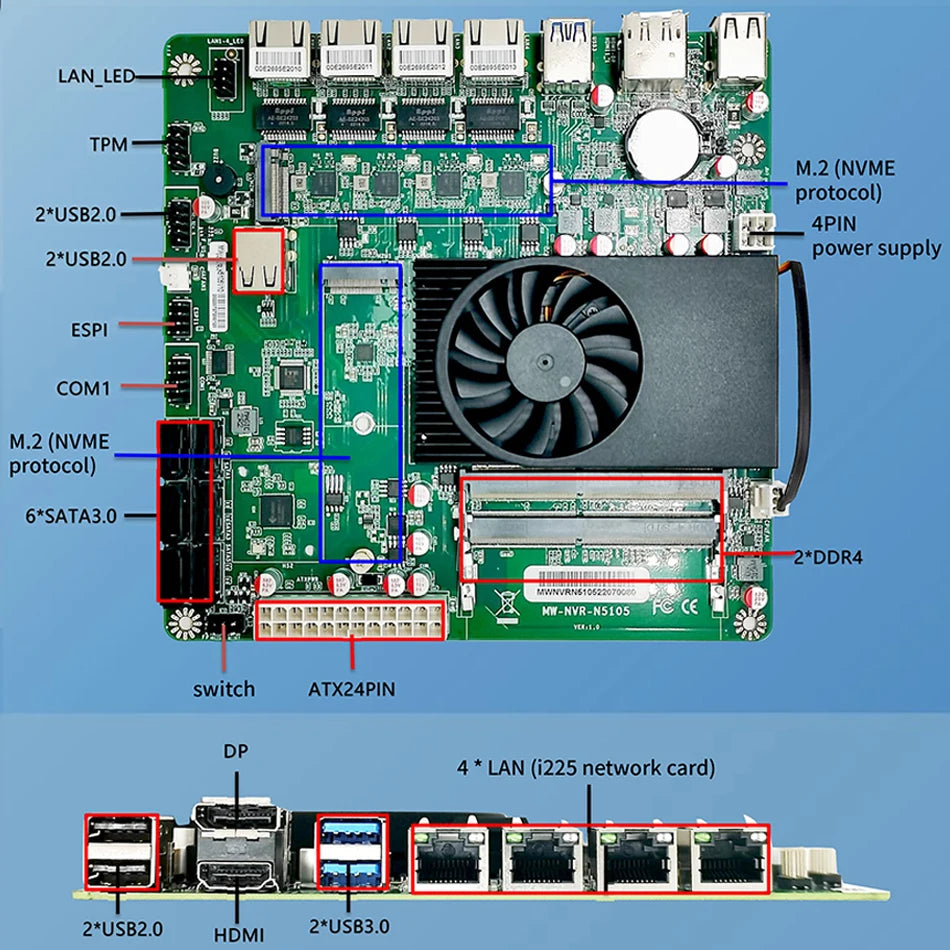

Features
■ Intel N5105 CPU (four cores and four threads)
■ 4*2.5G network port, support wake on LAN/PXE (Green board: Intel i225, black board: Intel i266 V)
■ Support HD+DP, synchronous or asynchronous display
■ 2*USB3.0, 2*USB2.0
■ 2*DDR4 SO-DIMM (Maximum 2933Mhz; 2*32GB)
■ 1*COM (RS232 protocol)
■ 6*SATA and 2*M.2 for storage
