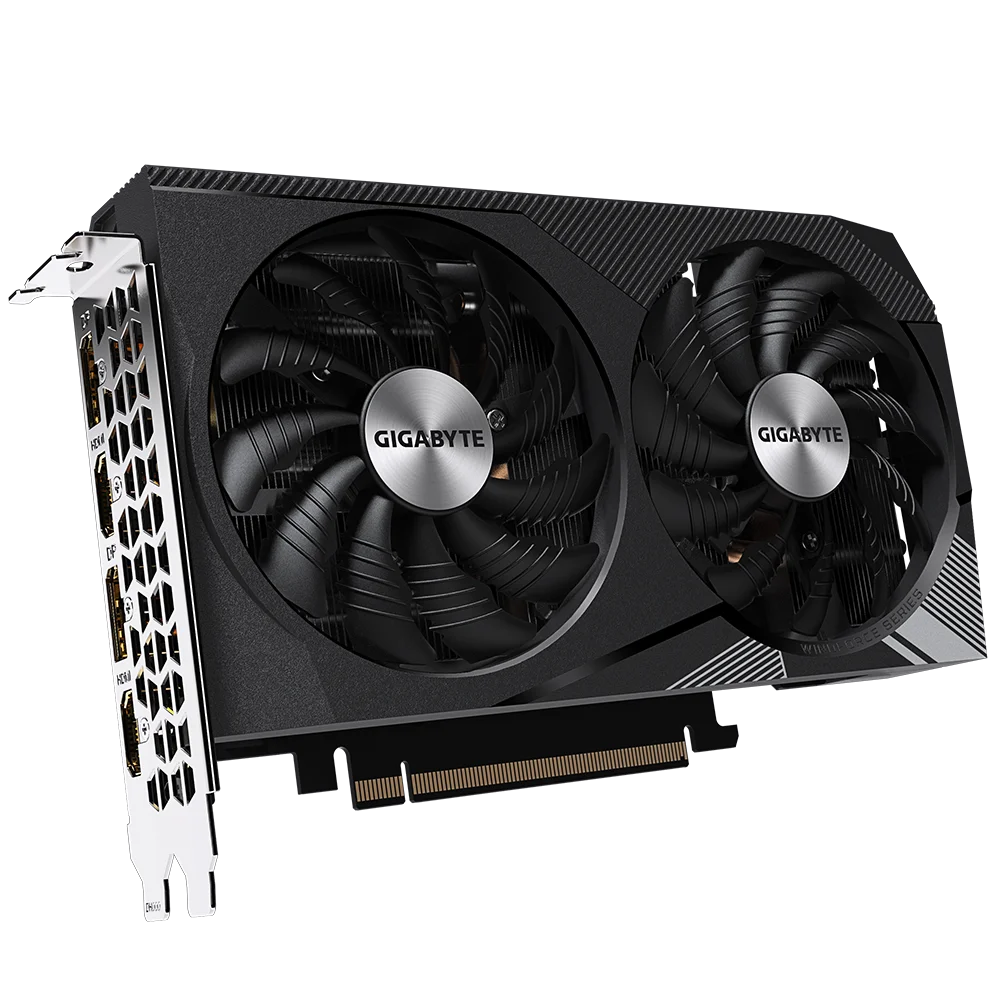

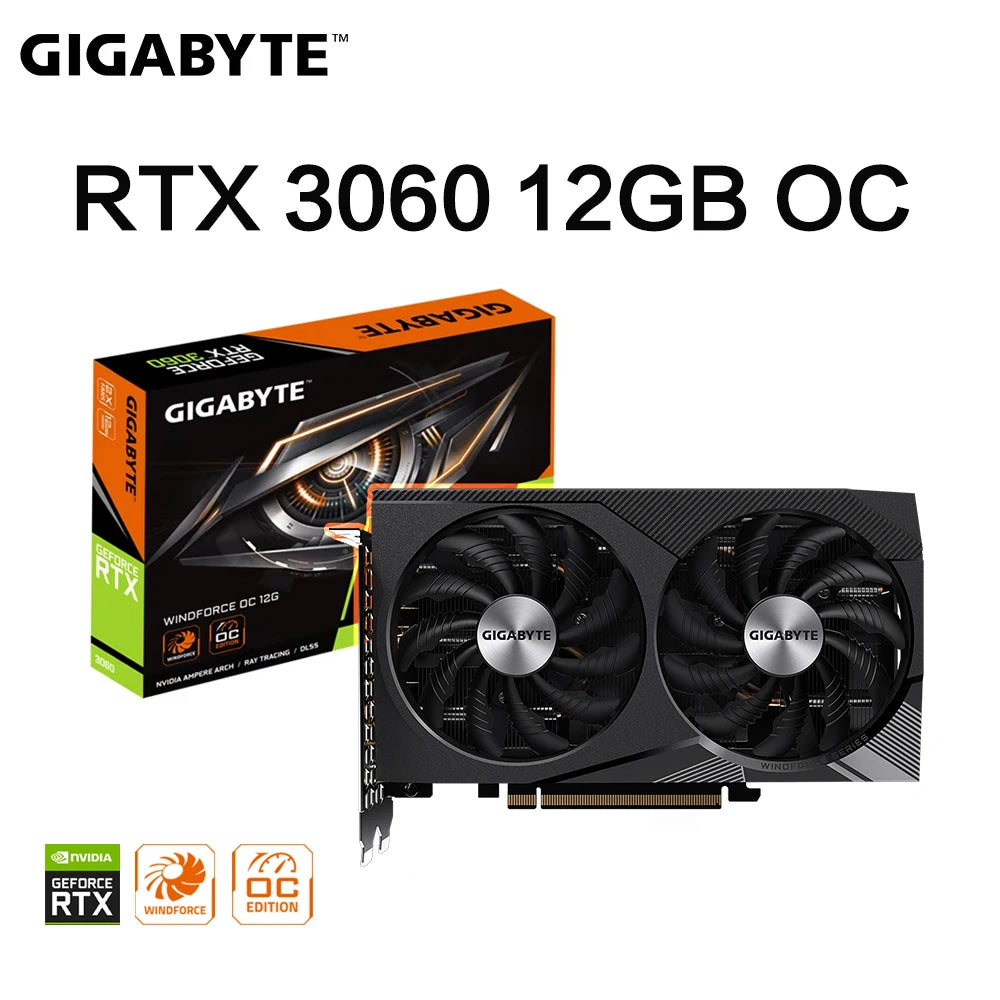

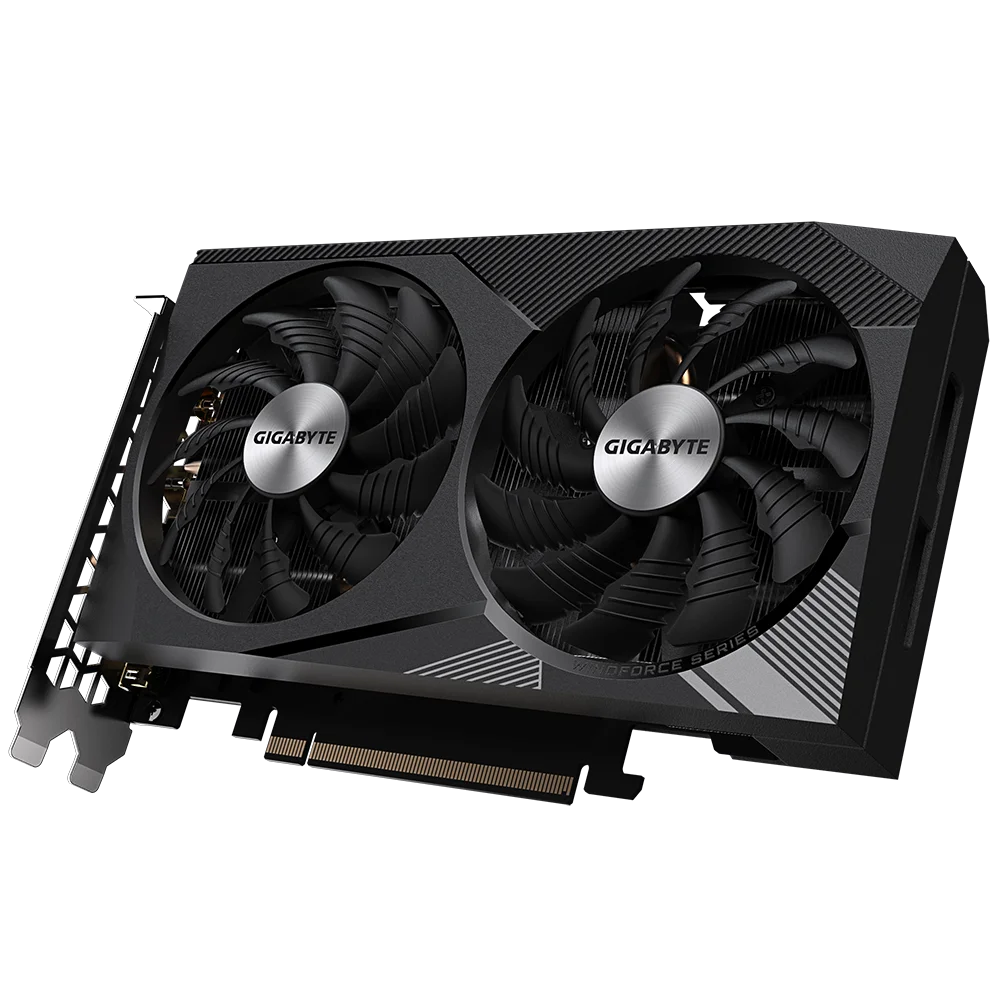

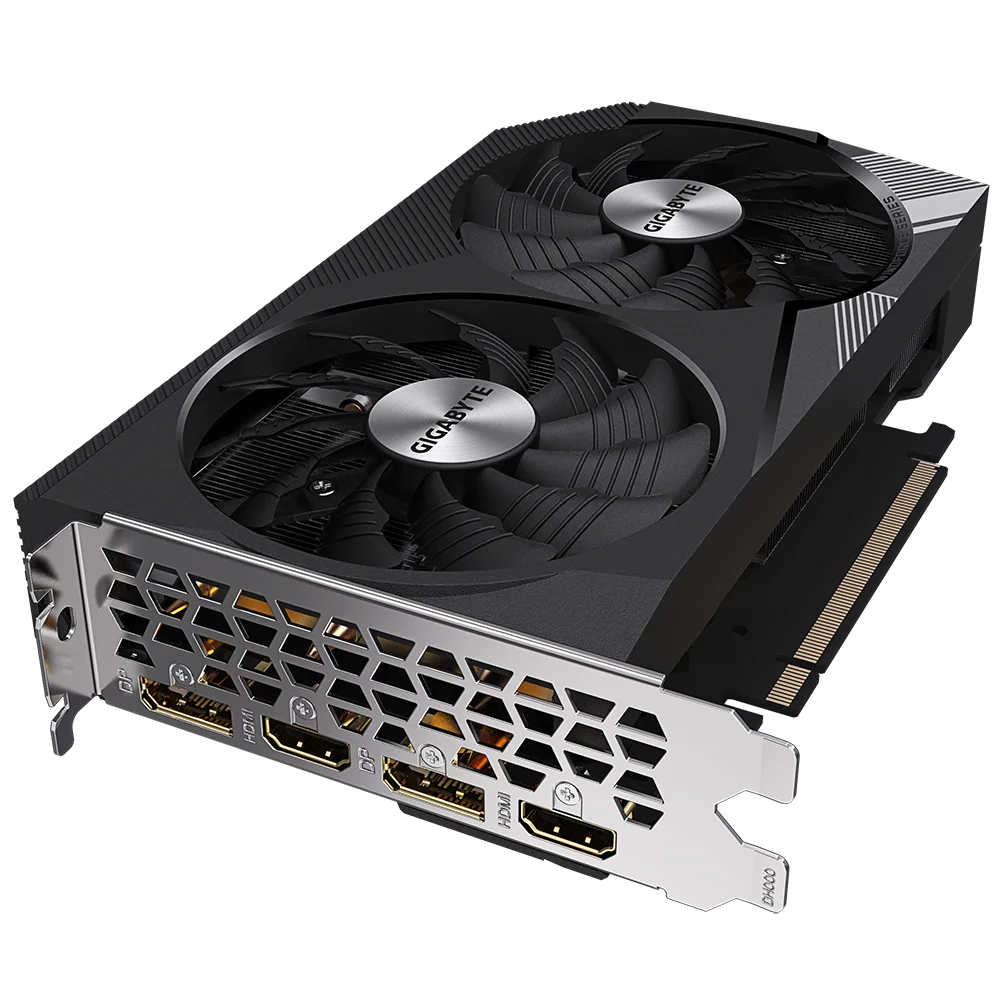

GIGABYTE RTX 3060 WINDFORCE OC 12GB Gaming Graphics Card GDDR6 192Bit With 2X Fans NVIDIA Video Card GV-N3060 Gaming Video Card
GIGABYTE RTX 3060 WINDFORCE OC 12GB Gaming Graphics Card GDDR6 192Bit With 2X Fans NVIDIA Video Card GV-N3060 Gaming Video Card
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop
Brand Name: Gigabyte
Chip Process: 8NM
Chipset Manufacturer: NVIDIA
Choice: yes
Cooler Type: Double fan
Hign-concerned Chemical: None
Interface Type: PCI Express 4.0 x 16
Itel condition: New
Max Resolution: 7680 x 4320
Memory Clock(Mhz): 15000
Memory Interface: 192 Bit
Origin: Mainland China
Output Interface Type: HDMI 1.4 x 2,HDMI 2.1 X 2
Overclocked: YES
Package: YES
Power Connector: 8pin
Product Category: Desktop Graphics Cards
Product Features: VR READY,HDCP Ready
RGB: No
Stream Processors: 3584
Usage Scenario: Gaming,Audio & Video,Household,Office,DESIGN
Video Memory Capacity: 12GB
Video Memory Type: GDDR6
SPECIFICATIONS
• GPU Model: NVIDIA Geforce RTX3060
• Stream Processors: 3584
• Core Clock(Mhz): 1792MHz
• Memory Clock(Mhz): 15000MHz
• Video Memory Capacity: 12GB
• Video Memory Type: GDDR6
• Video Memory Interface: 192 Bit
• Video Memory bandwidth (GB/sec): 360.0GB/s
• Interface Type: PCI Express 4.0 x 16
• DirectX: DirectX 12(12-2)
• Max Resolution: 7680*4320@60Hz
• Power supply: 550W
• Power supply interface: 8pin

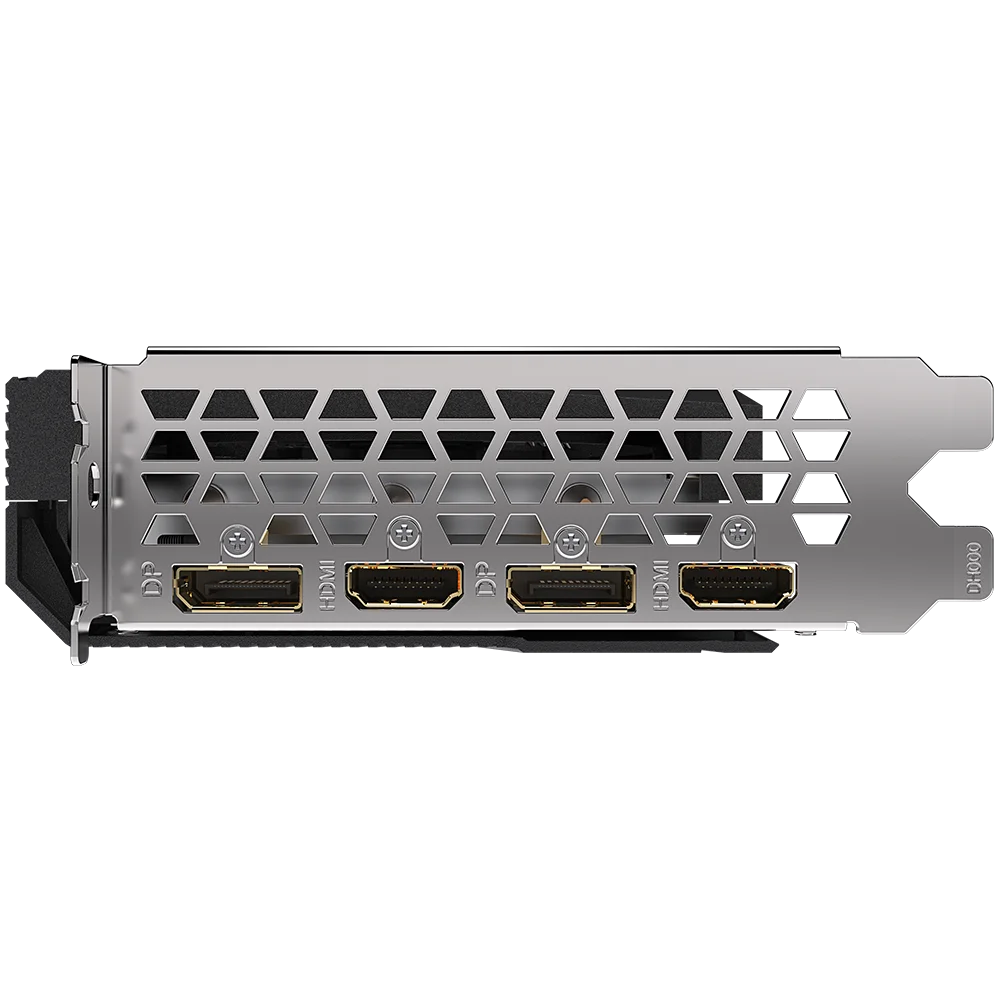

• Output interface: DisplayPort 1.4a*2 HDMI 2.1*2

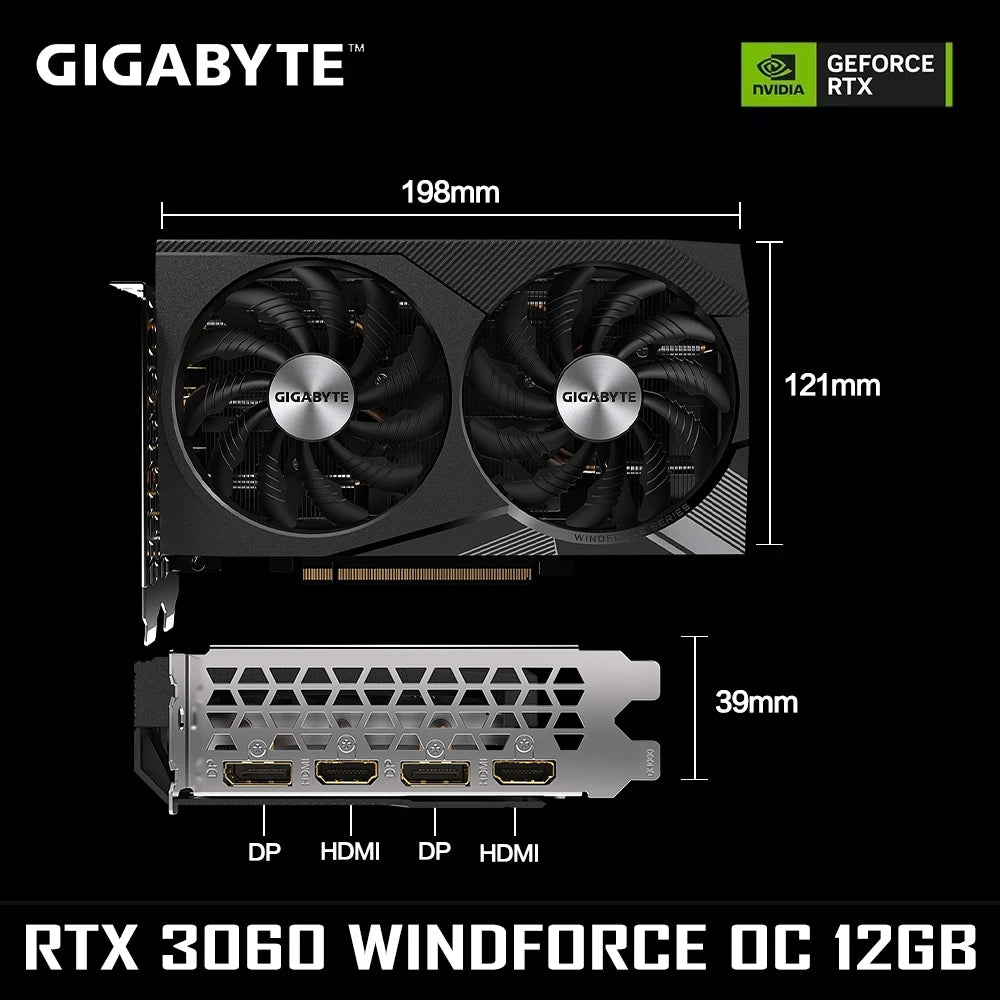

• Size: L=198mm W=121mm H=39mm
NVIDIA AMPERE ARCHITECTURE
The all-new NVlDlA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput
WINDFORCE 2XCOOLING SYSTEM
The WINDFORCE 2X cooling system features two 90mm unique bladefans, alternate spinning,3 composite copper heat pipes direct touch GPU,3D active fan and Screen cooling, which together provide high efficiency heat dissipation,
ALTERNATE SPINNING
The GlGABYTE "Alternate Spinning" is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate inthe same direction, the airflow direction is opposite between the fans,which will cause turbulent airflow and reduce heat dissipation efficiency GIGABYTE turns the adjacent fans in the opposite direction, so that theairflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edgeand guided smoothly through the 3D stripe curveon the fan surface, effectively enhancing the airflow.
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling
TINY SIZE WITH MIGHTY PERFORMANCE
For gamers who prefer a small build with powerful performance, GIGABYTEdelivers a compact graphics card with less than 200mm in length. The cardprovides mighty performance and is easy to install in any small chassis as well

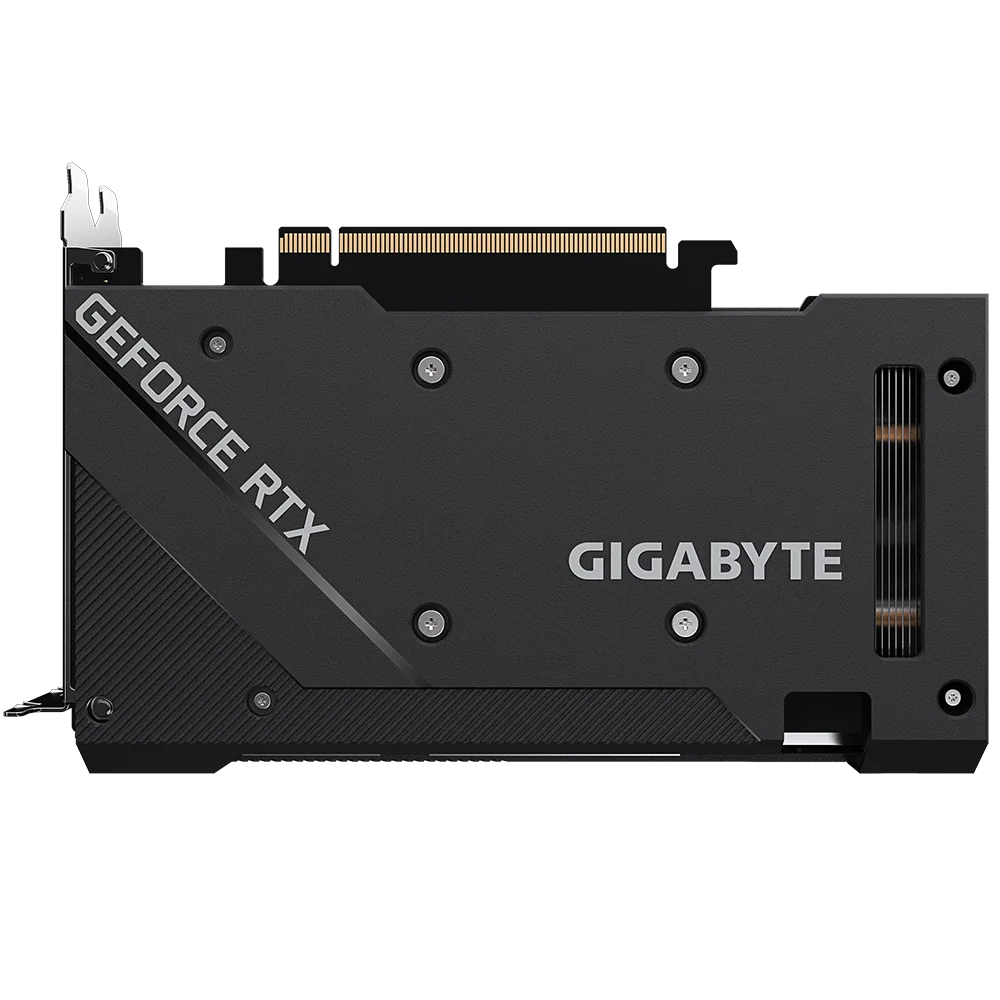

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhancesthe structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solidcapacitors, 2oz copper PCB, and lower RDS(on)MOSFETs, plusover-temperature design to deliver superior performance and longersystem life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuitboards and eliminates sharp protrusions of the solder connectors seen onthe conventional PCB surface. This friendly design prevents your handsfrom getting cut or inadvertently damaging components when making yourbuild.
